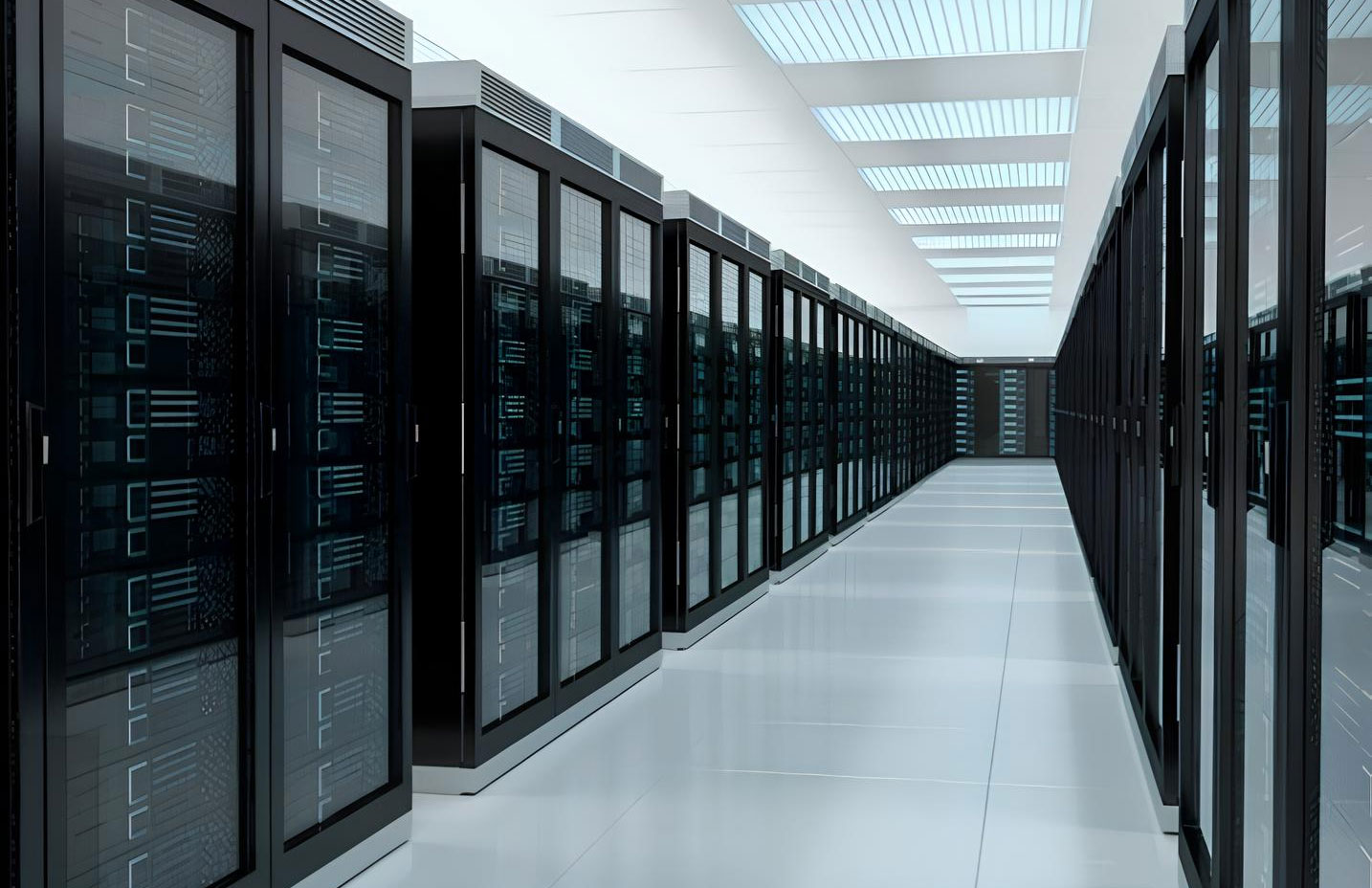

When the power grid is malfunction, battery discharge can maintain continuous power supply, providing reliable power protection for sensitive devices in IDC internet data center.

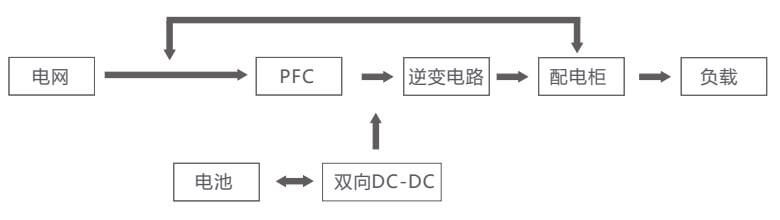

Application Schematic Diagram

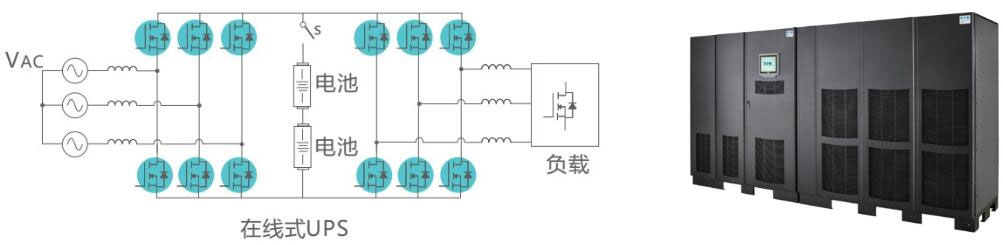

Typical Topology Diagram
SiC MOSFET
Product | Package | VDSmax | RDS(on) typ | VGS(th) max | ID @25℃ max | QG | Ciss | Coss |
BCZ120N21M1 | TO247-4 | 1200V | 21mΩ | 4.5V | 100A | 198nC | 3741pF | 224pF |
BCW120N21M1 | TO247-3 | 1200V | 21mΩ | 4.5V | 100A | 209nC | 3683pF | 225pF |
BCZ120N40M1 | TO247-4 | 1200V | 40mΩ | 4.5V | 60A | 109nC | 1960pF | 125pF |
BCZ120N80M1 | TO247-4 | 1200V | 80mΩ | 4.5V | 30A | 52nC | 880pF | 64pF |
BCW120N80M1 | TO247-3 | 1200V | 80mΩ | 4.5V | 30A | 50nC | 885pF | 65pF |
BCBF120N80M1 | TO263-7 | 1200V | 80mΩ | 4.5V | 30A | 50nC | 880pF | 64pF |
