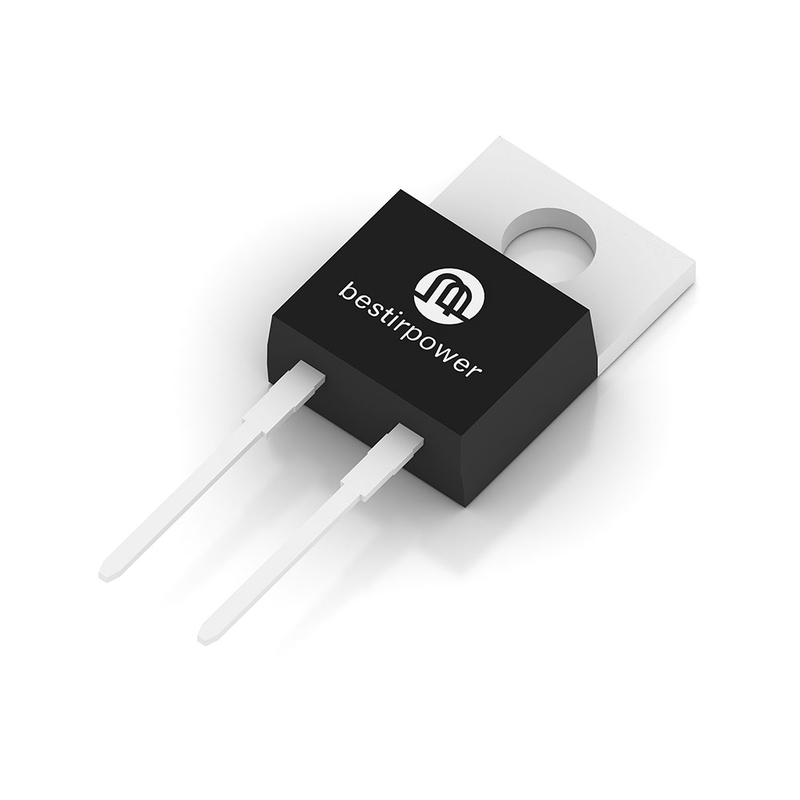

Benefits
• High frequency
• Low heat dissipation requirements
• Reduce size and cost of the system
• High-reliability
Applications
• Switch mode power supply
• Solar inverter
• Data Center
• Uninterruptible power supply

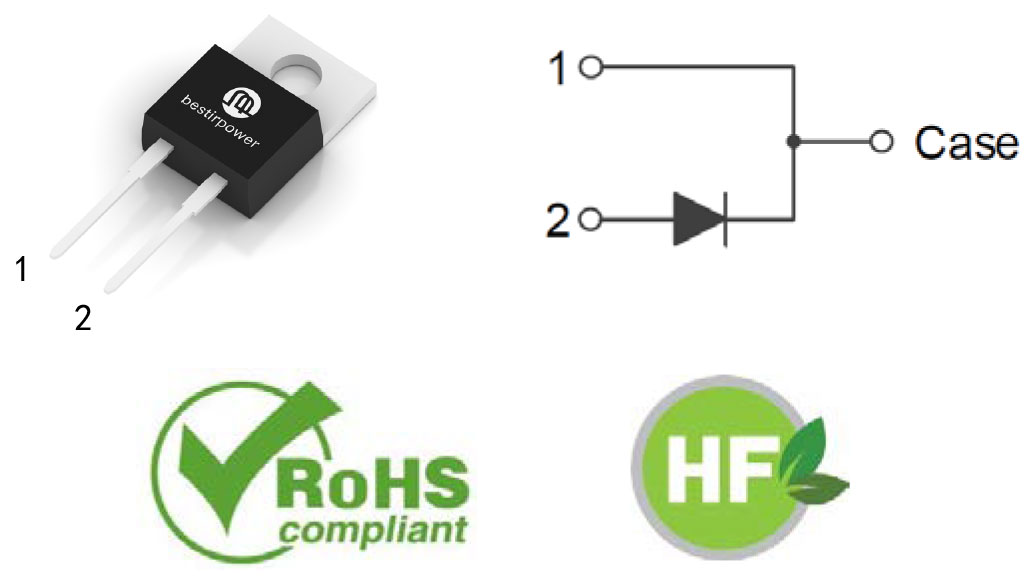

Features
VRRM | IF | TC | QC |
650 V | 4 A | 142 °C | 7.9 |
• Negligible reverse recovery
• High-speed switching
• Positive Temperature Coefficient
• Temperature-Independent Switching
• RoHS compliant
Absolute Maximum Ratings (TC=25°C unless otherwise noted)
Symbol | Parameter | Value | Unit | |
VRRM | Repetitive Peak Reverse Voltage | 650 | V | |
IF | Forward Current | TC=25°C | 10 | A |
TC=135°C | 5.5 | A | ||
TC=142°C | 4 | A | ||
IF,SM | Non-Repetitive Forward Surge Current | TC=25°C, tp=10 ms | 32 | A |
TC=110°C, tp=10 ms | 22 | A | ||
IF,SM | Repetitive Peak Forward Surge Current | TC=25°C, tp=10 ms | 23 | A |
I²dt value | ∫I²t | TC=25°C, tp=10 ms | 5.1 | A²s |
TC₎=110°C, tp=10 ms | 2.6 | A²s | ||
Ptot | Power Dissipation | TC=25°C | 49 | W |
TC=110°C | 21 | W | ||
TC=150°C | 8 | W | ||
| TJ,TSTG | Operating Junction and Storage Temperature | -55 to +175 | °C | |
| RθJC | Thermal Resistance, Junction to Case, Typ. | 3.06 | ℃/W | |
Electrical Characteristics (TC=25°C unless otherwise noted)
Symbol | Parameter | Test Conditions | Min | Typ | Max | Unit |
VDC | DC blocking voltage | - | 650 | - | - | V |
VF | Forward Voltage | IF=4A, TJ=25°C | - | 1.4 | 1.6 | V |
IF=4A, TJ=175°C | - | 1.97 | 2.2 | V | ||
IR | Reverse Current | VR=650V, TJ=25°C | - | 1 | 50 | μA |
VR=650V, TJ=175°C | - | 30 | 100 | μA | ||
QC | Total Capacitive Charge | VR=400V, TJ=25°C | - | 7.9 | - | nC |
C | Total Capacitance | VR=0V, f=1MHz | - | 119 | - | pF |
VR=200V, f=1MHz | - | 14.24 | - | pF | ||
VR=400V, f=1MHz | - | 13.64 | - | pF | ||
EC | Capacitance Stored Energy | VR=400V, TC=25°C | - | 1.9 | - | μJ |
Typical Performance Characteristics

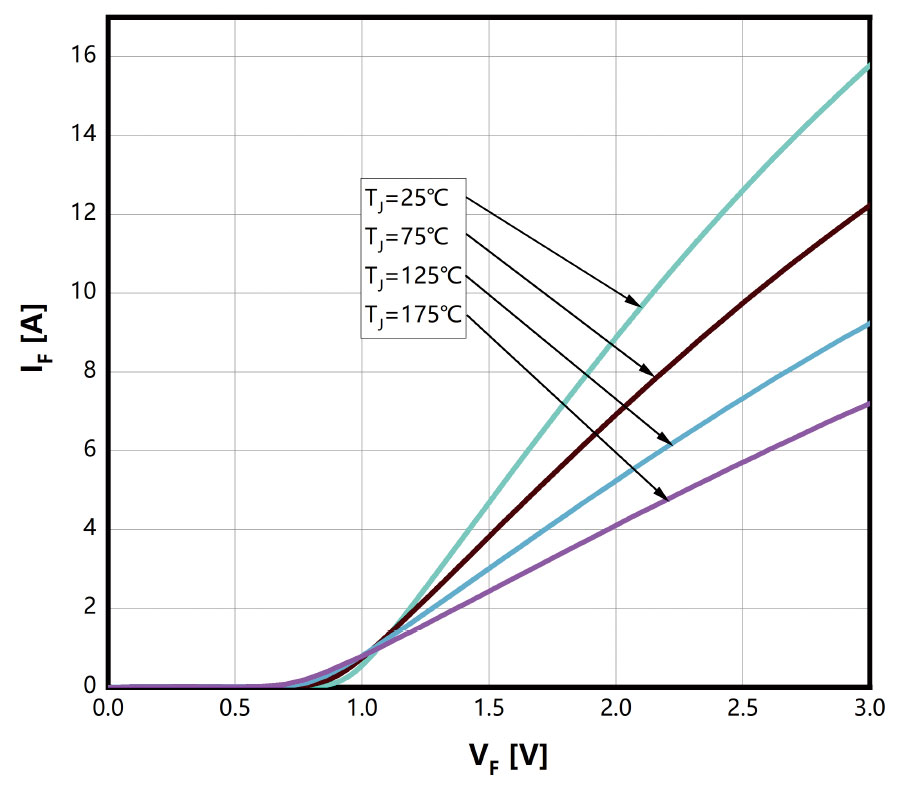

Figure 1. Forward Characteristics

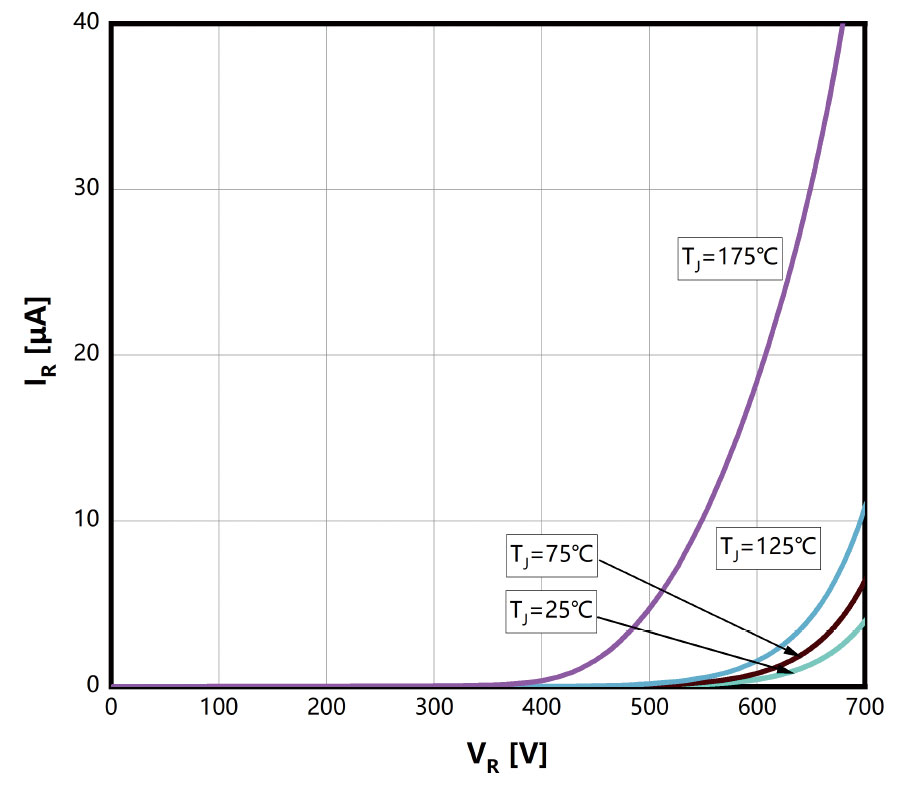

Figure 2. Reverse Characteristics

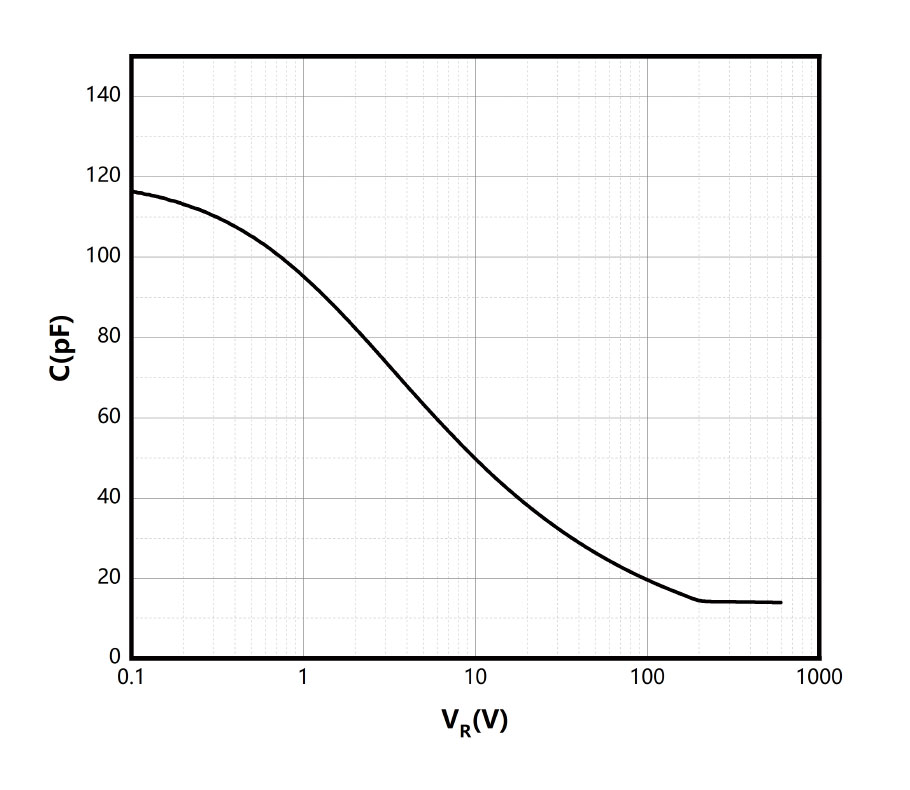

Figure 3. Capacitance vs. Reverse Voltage

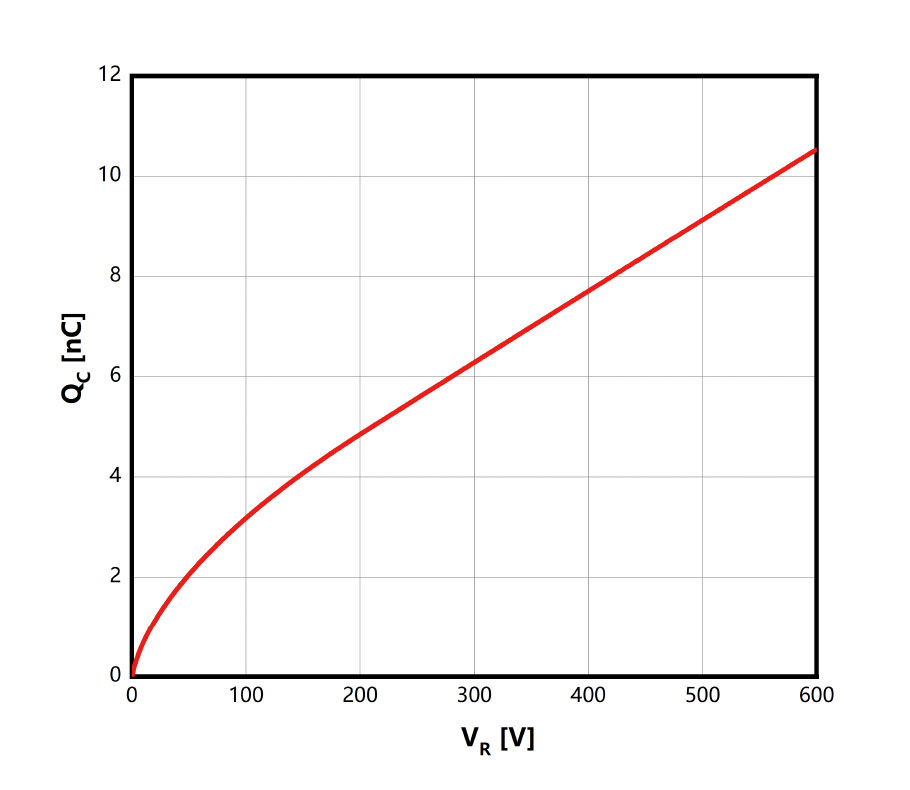

Figure 4. Capacitance Charge vs. Reverse Voltage

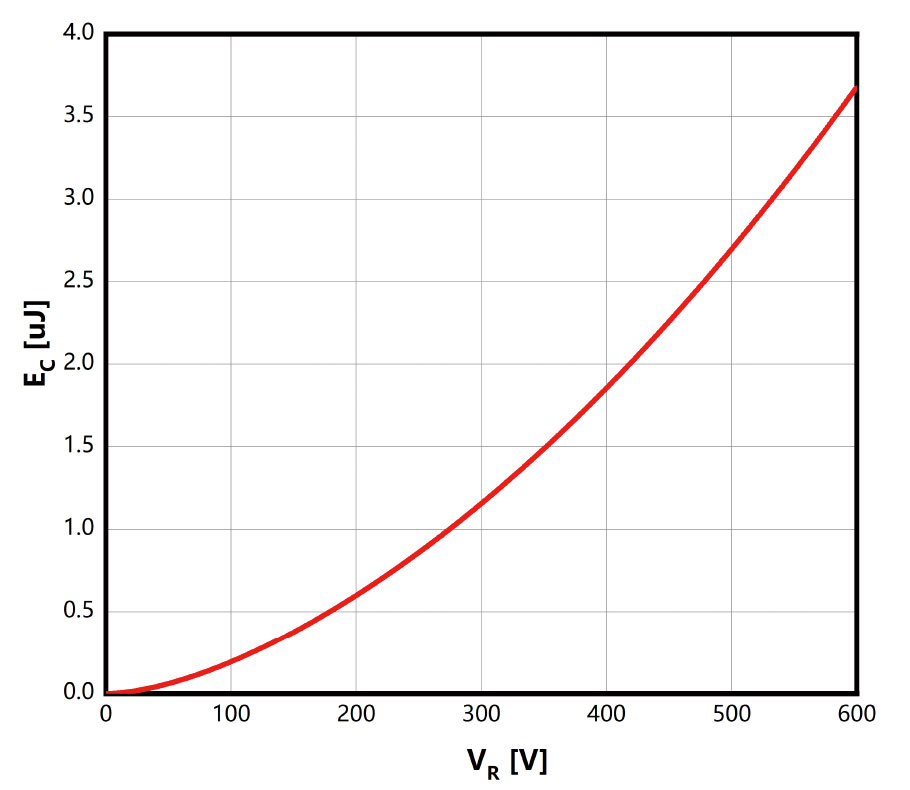

Figure 5. Capacitance Stored Energy

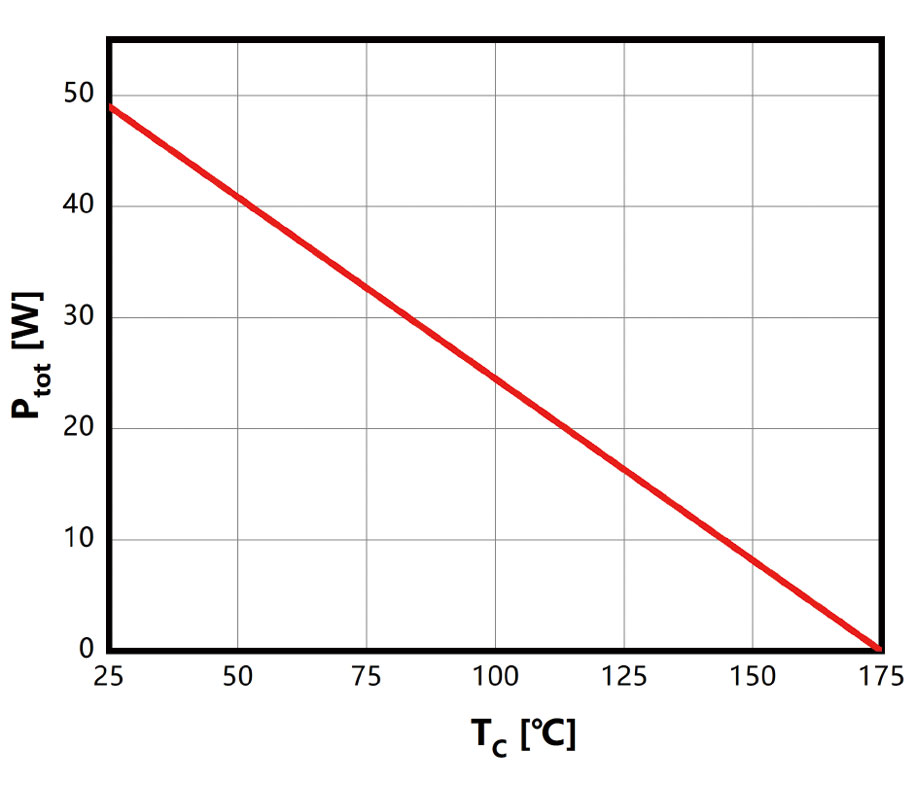

Figure 6. Power Derating

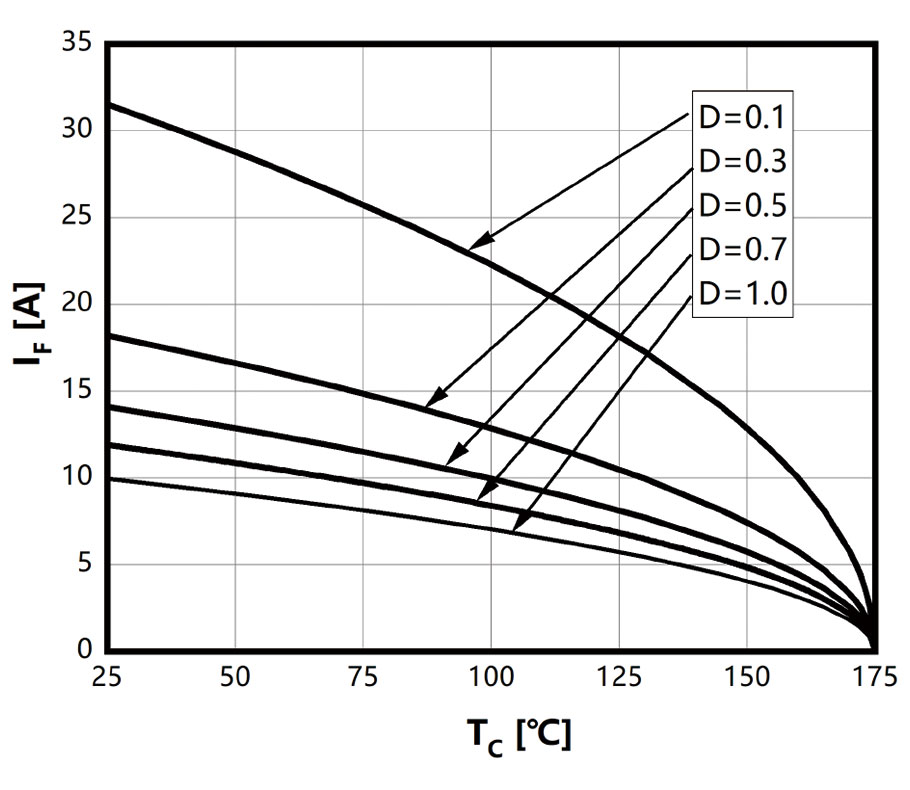

Figure 7. Current Derating

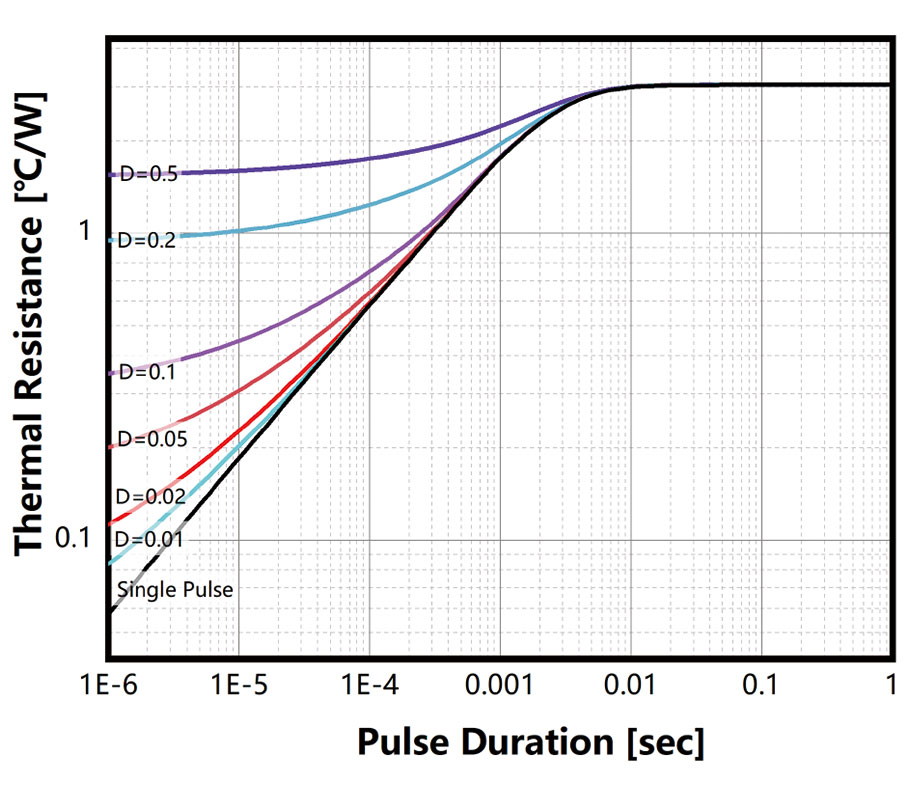

Figure 8. Transient ThermalImpedance

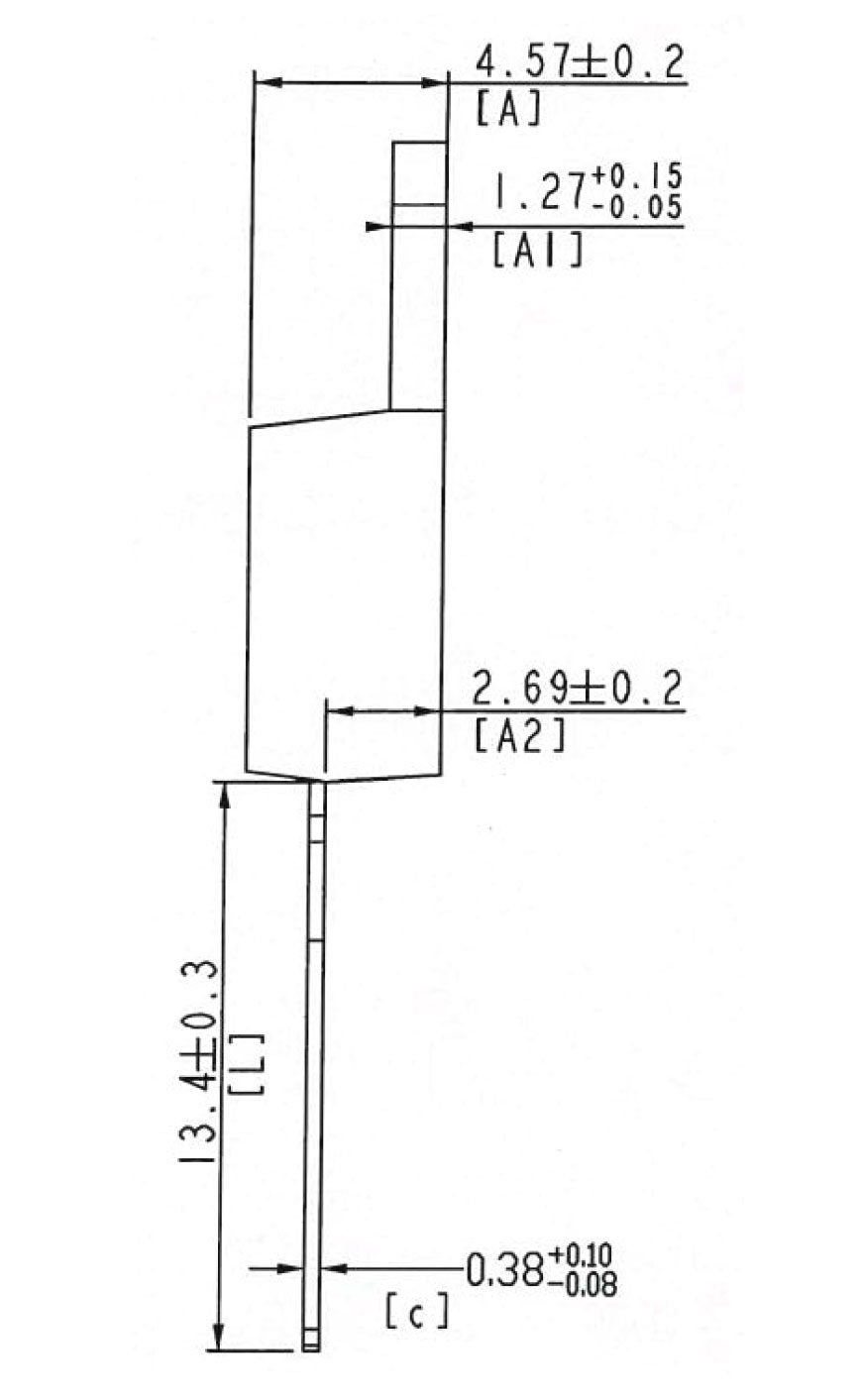

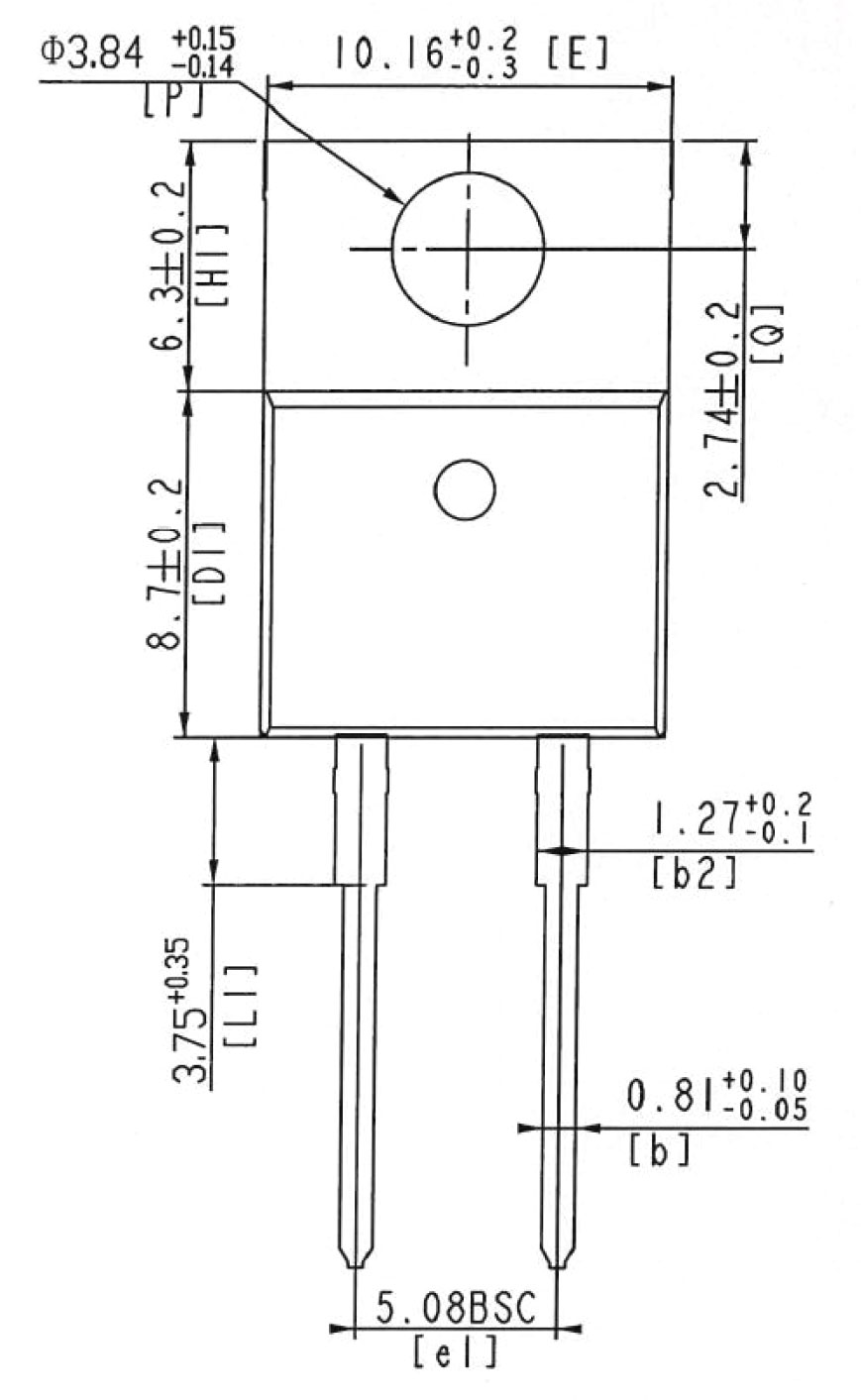

Package Outlines TO220-2
Package Marking and Ordering Information
Part Number | Top Marking | Package | Packing Method | Quantity |
BCH65S04D4 | BCH65S04D4 | TO220-2 | Tube | 50 units |
