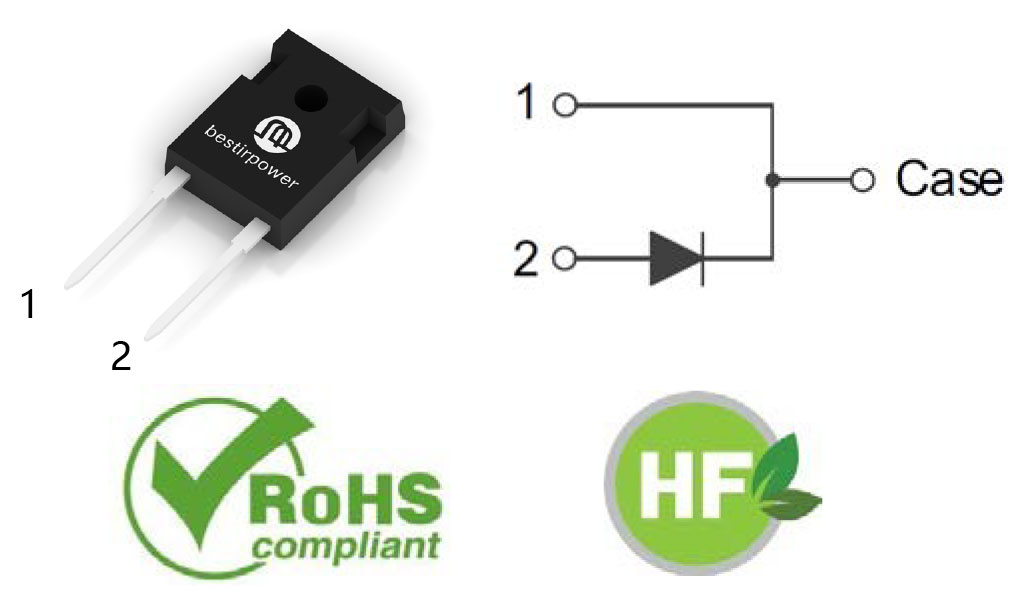

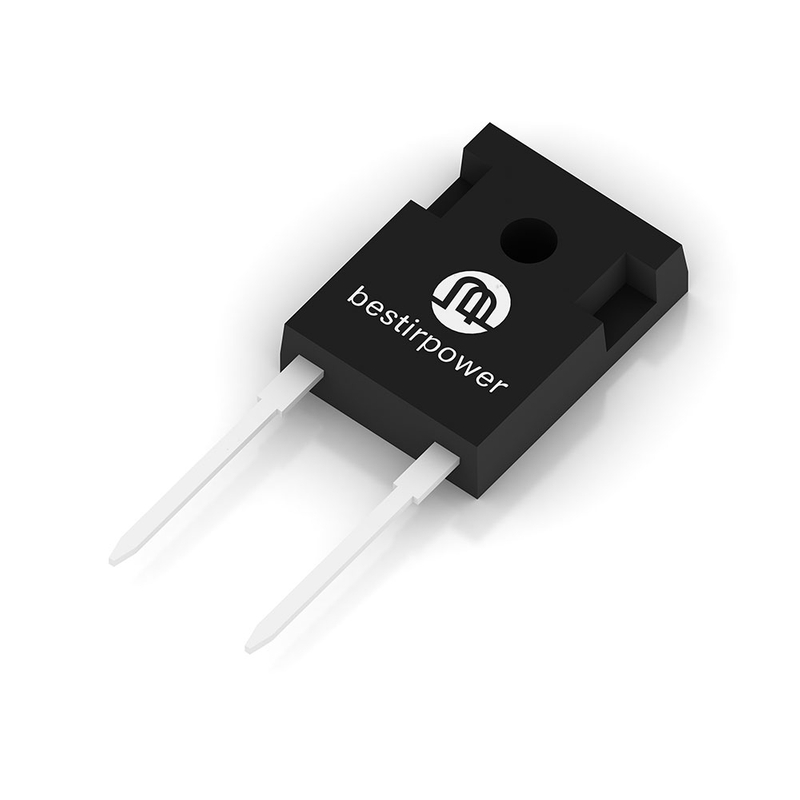

Benefits
• High frequency
• Low heat dissipation requirements
• Reduce size and cost of the system
• High-reliability
Applications
• Switch mode power supply
• Solar inverter
• Data Center
• Uninterruptible power supply
Features
VRRM | IF | TC | QC |
650 V | 10 A | 135 °C | 28 nC |
• Negligible reverse recovery
• High-speed switching
• Positive temperature coefficient
• Temperature-Independent switching
• RoHS compliant/ Halogen-free
Absolute Maximum Ratings (TC=25°C unless otherwise noted)
Symbol | Parameter | Value | Unit | |
VRRM | Repetitive Peak Reverse Voltage | 650 | V | |
IF | Forward Current | TC=25°C | 40 | A |
TC=135°C | 20 | A | ||
TC=162°C | 10 | A | ||
IF,SM | Non-Repetitive Forward Surge Current | TC=25°C, tp=10 ms | 140 | A |
TC=110°C, tp=10 ms | 110 | A | ||
IF,SM | Repetitive Peak Forward Surge Current | TC=25°C, tp=10 ms | 90 | A |
I²dt value | ∫I²t | TC=25°C, tp=10 ms | 42 | A²s |
TC₎=110°C, tp=10 ms | 37 | A²s | ||
Ptot | Power Dissipation | TC=25°C | 204 | W |
TC=110°C | 88 | W | ||
TC=150°C | 34 | W | ||
| TJ,TSTG | Operating Junction and Storage Temperature | -55 to +175 | °C | |
| RθJC | Thermal Resistance, Junction to Case, Typ. | 0.73 | ℃/W | |
Electrical Characteristics (TC=25°C unless otherwise noted)
Symbol | Parameter | Test Conditions | Min | Typ | Max | Unit |
VDC | DC blocking voltage | - | 650 | - | - | V |
VF | Forward Voltage | IF=10A, TJ=25°C | - | 1.45 | 1.7 | V |
IF=10A, TJ=175°C | - | 1.75 | - | V | ||
IR | Reverse Current | VR=650V, TJ=25°C | - | 2 | 20 | μA |
VR=650V, TJ=175°C | - | 40 | - | μA | ||
QC | Total Capacitive Charge | VR=400V, TJ=25°C | - | 28 | - | nC |
C | Total Capacitance | VR=0V, f=1MHz | - | 550 | - | pF |
VR=200V, f=1MHz | - | 53 | - | pF | ||
VR=400V, f=1MHz | - | 48 | - | pF | ||
EC | Capacitance Stored Energy | VR=400V, TC=25°C | - | 7.0 | - | μJ |
Typical Performance Characteristics

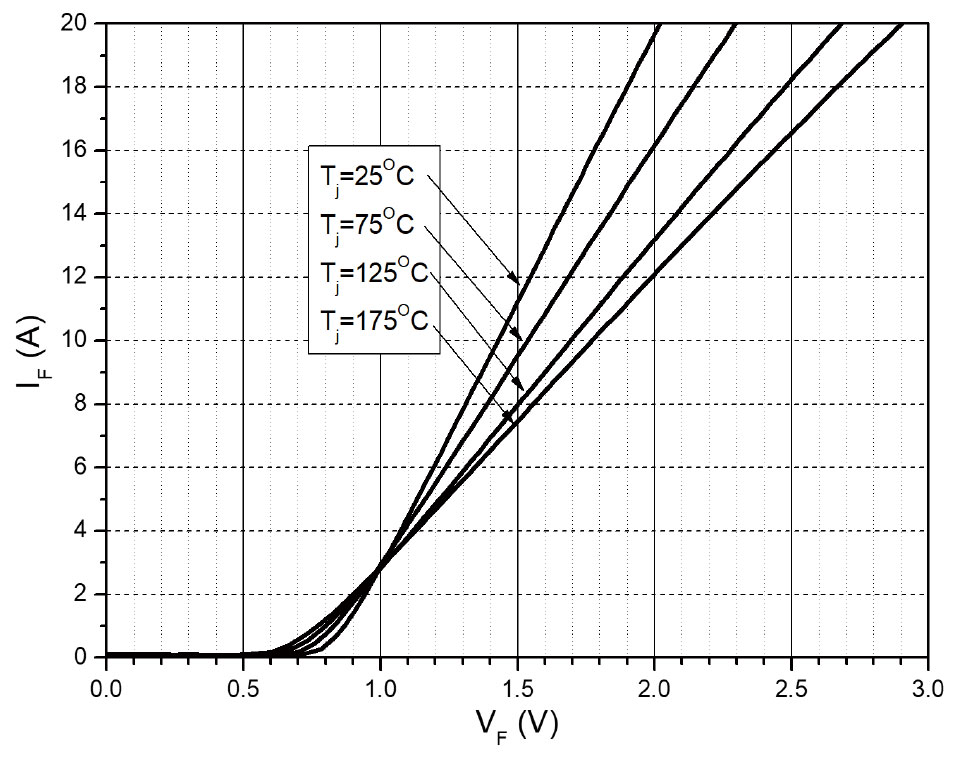

Figure 1. Forward Characteristics

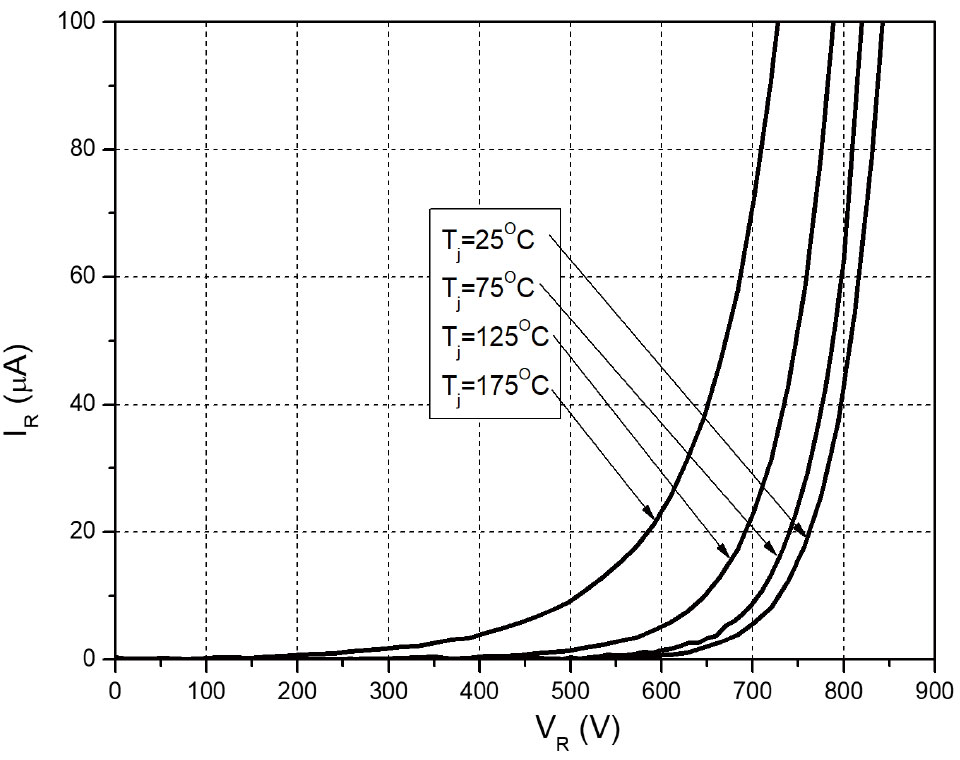

Figure 2. Reverse Characteristics

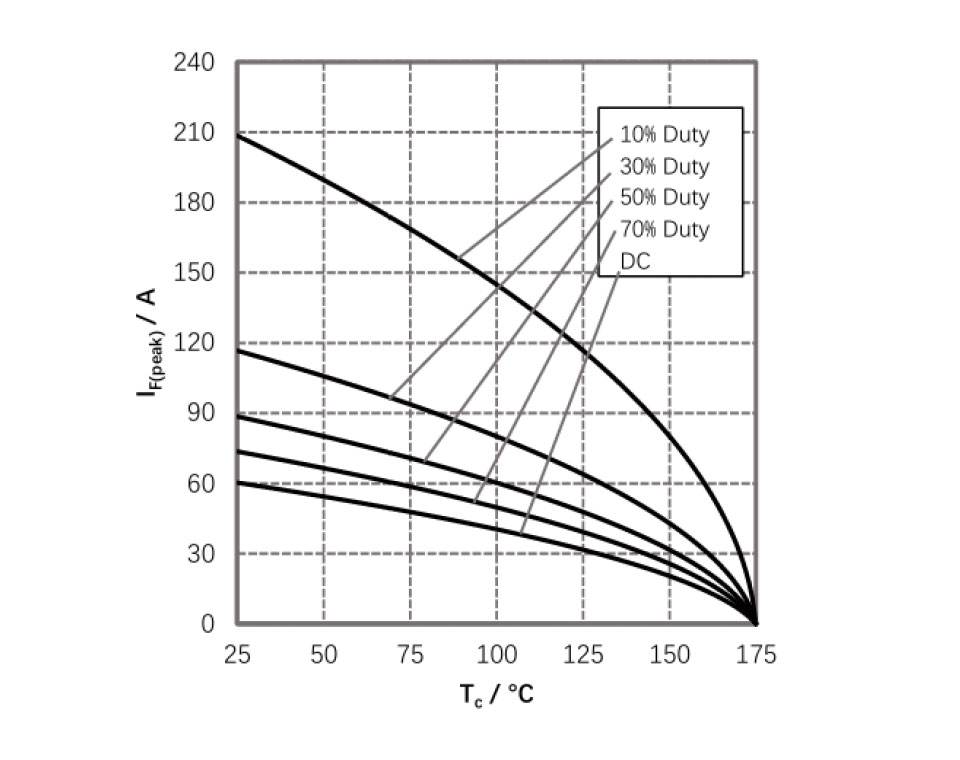

Figure 3. Peak ForwardCurrent Derating

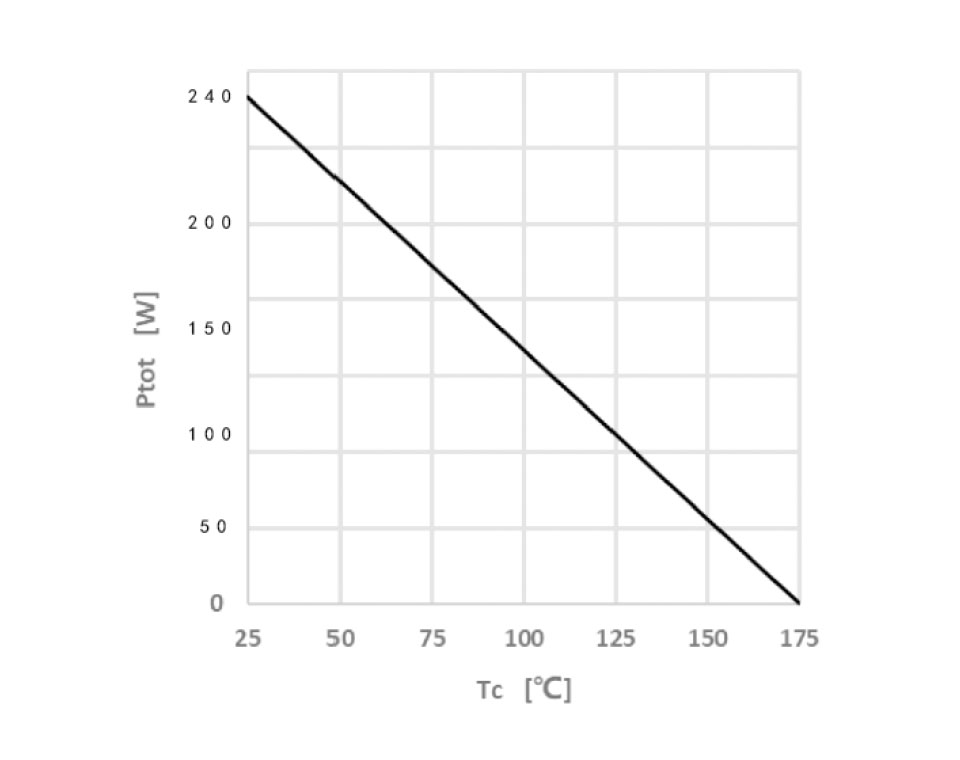

Figure 4. PowerDissipation

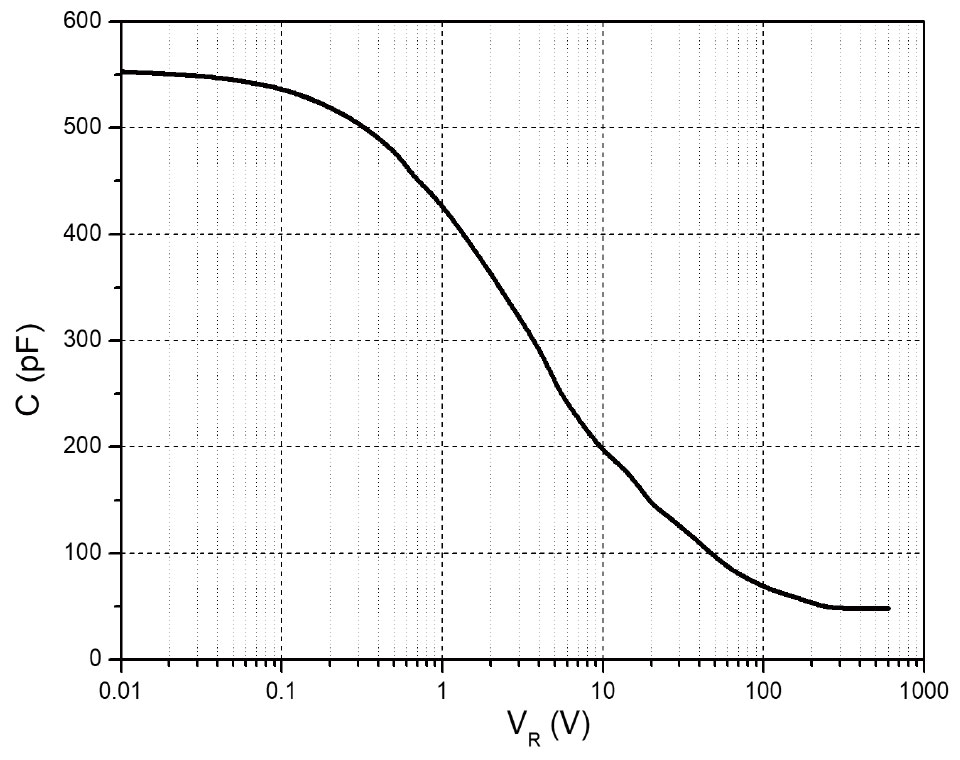

Figure 5. Capacitance vs. Reverse Voltage

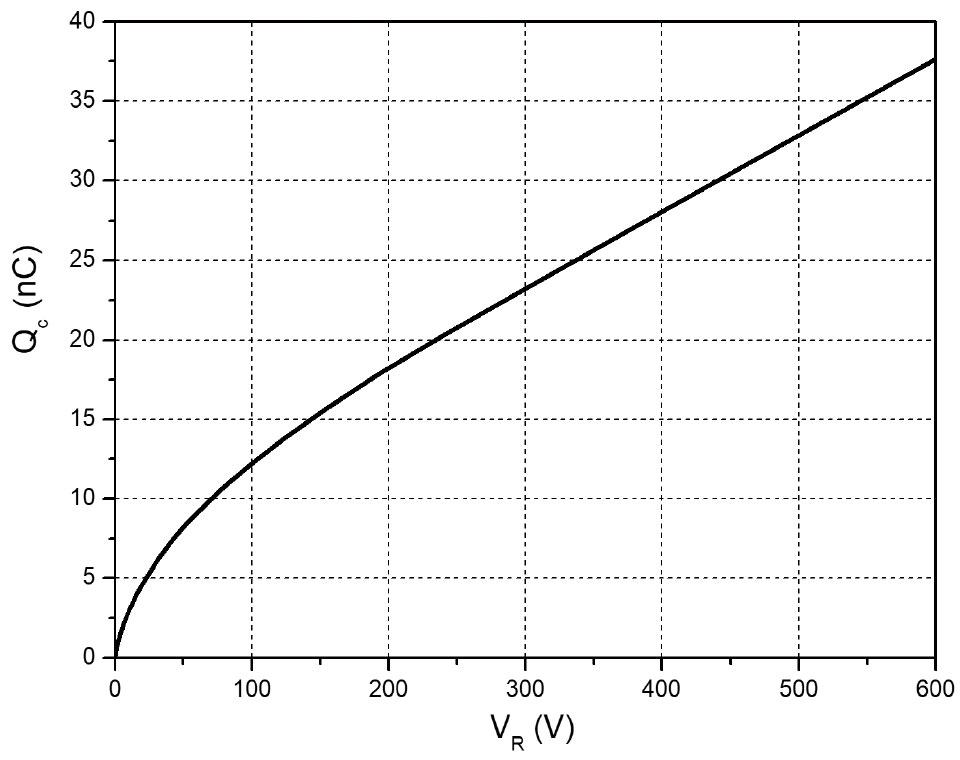

Figure 6. Capacitance Charge vs. Reverse Voltage

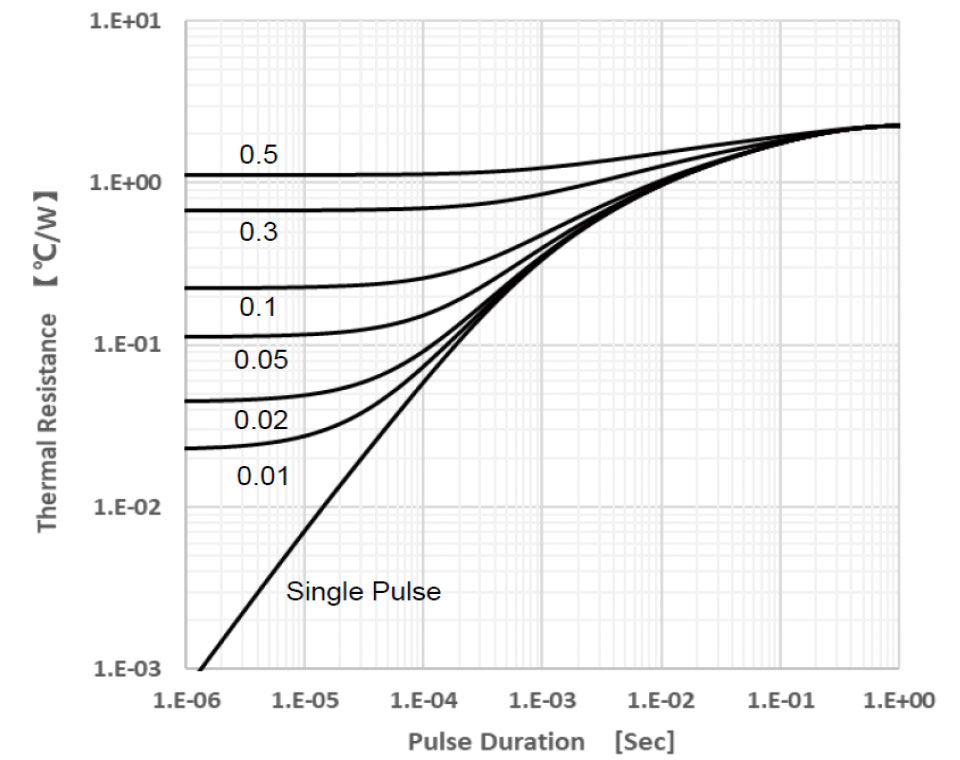

Figure 7. Transient Thermal Impedance

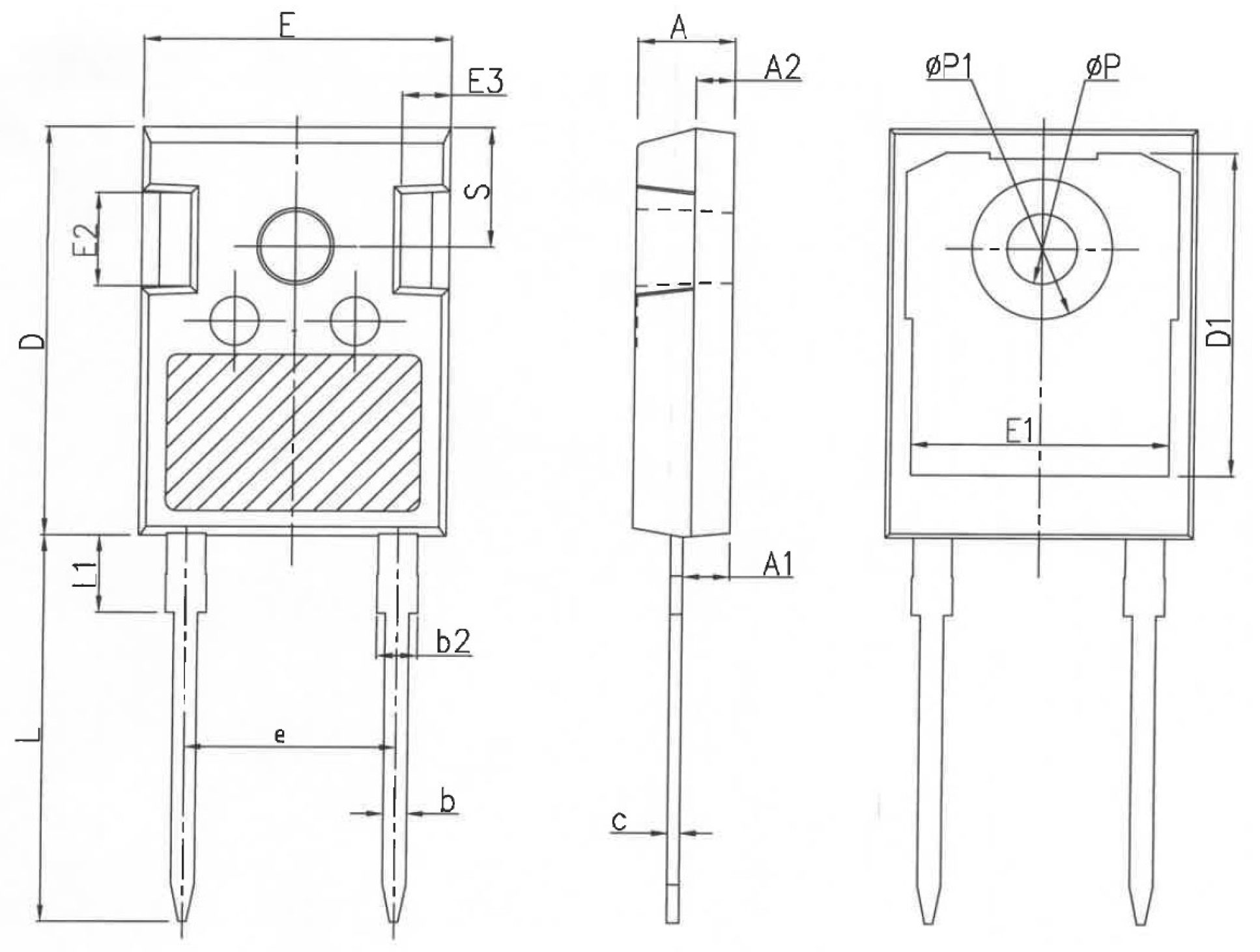

Package Outlines TO247-2
COMMON DIMENSIONS
| SYMBOL | mm | ||
| MIN | NOM | MAX | |
| A | 4.80 | 5.00 | 5.20 |
| A1 | 2.21 | 2.41 | 2.59 |
| A2 | 1.85 | 2.00 | 2.15 |
| b | 1.11 | 1.21 | 1.36 |
| b2 | 1.91 | 2.01 | 2.21 |
| c | 0.51 | 0.61 | 0.75 |
| D | 20.70 | 21.00 | 21.30 |
| D1 | 16.25 | 16.55 | 16.85 |
| E | 15.50 | 15.80 | 16.10 |
| E1 | 13.00 | 13.30 | 13.60 |
| E2 | 4.80 | 5.00 | 5.20 |
| E3 | 2.30 | 2.50 | 2.70 |
| e | 10.88BSC | ||
| L | 19.62 | 19.92 | 20.22 |
| L1 | - | - | 4.30 |
| ΦP | 3.40 | 3.60 | 3.80 |
| ΦP1 | - | - | 7.30 |
| S | 6.15BSC | ||
* Dimensions in millimeters
Package Marking and Ordering Information
Part Number | Top Marking | Package | Packing Method | Quantity |
BCA6S510D3 | BCA6S510D3 | TO247-2 | Tube | 30 units |
